Paper Mill Machinery
Paper Mill Machinery
Our company is involved in providing a comprehensive
collection of Paper Machine Products. Our range includes Paper Machine Head
Box, Paper machine Foundrinier Part, Paper Machine Press Part, M. G.
Cylinder, Paper Machine Dryer Section, Pope Reeler / Drum Reeler, Rewinder
and Drive Arrangement for paper Machine. All our products are acknowledged
for their superior features that include high quality, high strength,
durability, reliability, longer service life, etc.

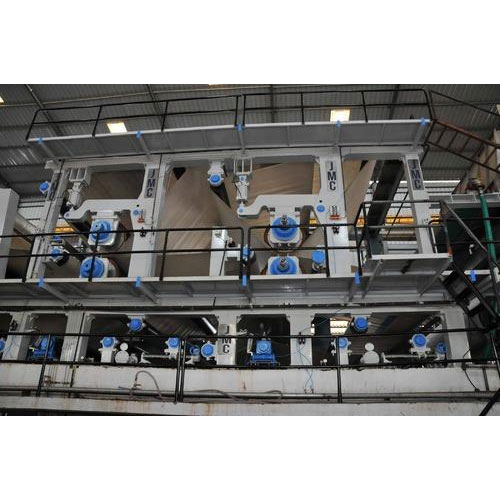

Paper Machine
Head Box

Ask for Price
Salient
Features
- Open Head Box for Machine speed up to 350 meters/ minute.
- Slice width up to 3800 mm are regularly manufactured.
- Profile variation across the deckle in maximum ±3 GSM
- Cylindrical, Tapered and Rectangular Tapered with Polypick diffuser,
Manifold are provided depending upon the quality and production EVENERRO
capacity.
- Two numbers Properly designed Evener rolls for evening effect and
better deflocculation.
- Machined and Ground Top and Bottom Lip for smooth flow of stock.
Paper Machine Fourdrinier Part

Ask for Price
Salient
Features
- High efficiency wire part with Plain Couch roll
- Drainage elements designed as per the Machine speed, Stock freeness and other properties.
- Auto or manual Wire guiding arrangement
- Cantilever arrangement on framing for quick wire change
- MS fabricated frame with 2 mm S.S. cladding
Paper Machine
Press Part

Ask for Price
Salient
Features
- Press Section is designed considering the quality of the Paper and
Paper Board.
- High Efficiency presses with Blind drill coating on top and bottom
roll with felting
- arrangement for high speed. Presses suitable up to 150 Kg / linear cm
are available
- Heavy Duty Press up to the finished diameter of 1000 mm are in
regular supply
- Heavy Duty framing with Hydraulic or pneumatic lading system
M.G. Cylinder

Ask for Price
Salient
Features
- MS fabricated M.G.Cylinder up to 16 feet (4.88 meter) diameter.
- Width up to 4.00 mtrs is in regular production.
- SS Coating on surface (Optional).
- Stress relieved for removing stresses developed during bending and
fabrication.
- Surface is machined and ground to achieve Mirror finish on the
surface -Finish Ra 8 micron.
- Scooping system is provided to remove condensate efficiently.
- Heavy duty framing is provided for vibration free operation.
- Single and double Touch roll is provided depending upon the process
requirement.
- Spur Gear and pinion in Cast Iron/ MS Fabrication/ polypick, teeth
are geometrically evenly cut on precise Hobbing Machine for noise free
operation.
- MG Cylinder is designed to operate on working pressure up to 6.0
Kgs/cm2.
- Hydraulically tested to a pressure of 11.0 Kgs/cm2 and held for 24
hrs.
Paper Machine
Dryer Section

Ask for Price
Salient
Features
- M.S (B.Q. Plate) Fabricated drying Cylinders with high evaporation
rate
- Available in 4 feet, 5 feet and 6 feet diameter
- Shell thickness various from 25 mm to 36 mm
- Operating Pressure up to 4.5 Kgs Cm² and specially designed for
higher working pressure up to 6.0 Kgs Cm²
- Suitable heavy duty framing in Graded Cast Iron and Mild Steel
fabrication for the maximum coverage of paper at dryer
- Rope feeding system is provided for Machine speed over 200 MPM
- Dryer surface ground finish to Ra micron balanced dynamically to
grade of 6.3 (ISO 1940)
Pope Reeler

Ask for Price
Salient
Features
- Pope Reeler is designed on the principle of friction Winding
- Primary grab Arm is Pneumatically / Hydraulically loaded and tilted
Hydraulically mechanically with manual operation.
- Secondary arm is loaded Pneumatically / Hydraulically
- Pope drum is MS Fabricated and designed to with stand required nip
pressure and provided with Doctoring arrangement
- Framing is Heavy duty in Cast Iron construction
Rewinder

Ask for Price
Vibration
Screens are used for screening of all fibers containing impurities. These
screens are used for screening of low as well as high consistency pulp. The
screen removes large impurities such as film, plastics, wet strength specks,
metal particles, wooden splinters etc.
Salient Features
- Heavy Duty Rewinder for trimming and rewinding of Paper Web in
required Reel Size.
- Rewinding is done by friction on double drum rolls duly loaded with
chrome coated Rider Roll
- Slitting arrangement is provided with pneumatically loaded trimming
knives.
- MS fabricated with frame proper stiffeners with Cast Iron Slide rail.
- Rider Roll is pneumatically balanced.
- Pusher roll for dislodging the rewound roll on collecting table.
- Pneumatically operated braking arrangement.
- Trim Handling system is provided with Blower and Dual Ventury
- Maximum operating speed is up to 500 MPM and driven by DC/ AC
variable speed drive. .
Drive Arrangement for paper
Machine

Ask for Price
Salient Features
- Line shaft drives as well as sectional drive depending up on the
Machine speed.
- Heavy duty Worm Gear Boxes / Bevel Helical gear boxes.
- Pneumatically operated Rubber tube clutches with shoe grips line
Shaft drive.
- Cone Pulley for different sizes
- DC variable / AC Variable Frequency drive.
- Sectional drives with DC variable speed drive with digital
synchronizing
- Hand operated Belt shifters. Motorized option is also available
